CSSM5X0.8AD

Metric Short Standard Crownserts

CSSM Series / Standard Type / AD / Short

Installed using the Crownserts Hand-Installation Tool:  CSTLM5

CSSM5X0.8AD is a metric short standard crownsert in 4130 alloy steel for high mechanical strength, with MJ5X0.8 internal and M7X1.0 external threads. Prepared for 6.03-6.13 mm tap drill and installed with CSTM5

Crownserts can offer you the part CSSM5X0.8AD with Certificate of Quality, Certificate of Conformity and Certificate of Origin on request.

CSSM5X0.8AD - Metric Short Standard Crownserts
CSSM5X0.8AD - Metric Short Standard Crownserts
CSSM5X0.8AD - Metric Short Standard Crownserts
CSSM5X0.8AD - Metric Short Standard Crownserts
 How to install a Crownsert?
CSSM5X0.8AD - Metric Short Standard Crownserts
CSSM5X0.8AD - Metric Short Standard Crownserts
CSSM5X0.8AD - Metric Short Standard Crownserts

Thread & Dimensions

Thread Ø T1 / class MJ5X0.8
Thread Ø T2 / class M7X1.0
Shear engagement (mm²) 63,32
L (±0.3) 7,60
A diameter 5,23
B diameter min 4,69
C (±0.20) 2,95
D 2,3
E min 1,7
Through-hole preparation Min. full THD depth *8,6; Min. full depth 14,1
Blind-hole preparation Min. full THD depth *8,6; Min. full depth 12,7

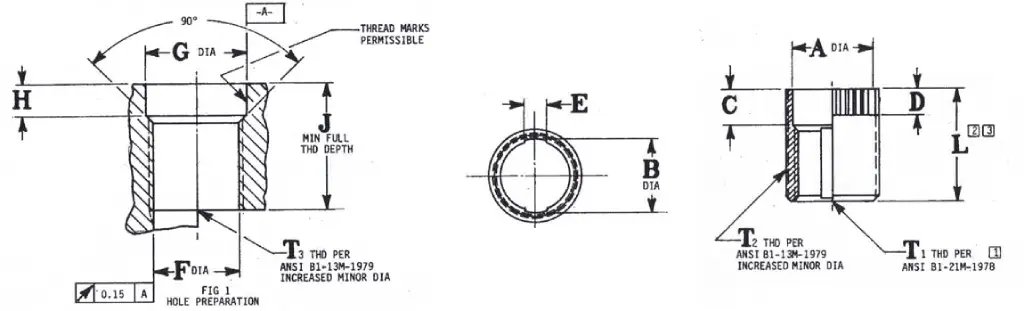

CSSM5X0.8AD schematic

Material & Finish

Material Alloy Steel 4130 per AMS 6370
Finish Cadmium Plated per AMS-QQ-P-416 Type 2, Class 3 & SFL per SAE AS5272
Temperature range Up to 450+°F
Heat treat RC 25-34
Magnetic YES

Tooling & Preparation

Hand-installation tool part number CSTLM5
Step drill part number CSD0613
Tap through tool part number TTIM7
Blind tap tool part number TBIM7
Removal tool part number CSRTM5
 REQUEST A QUOTE  DOWNLOAD OUR CATALOGUE

Crownserts is offering part CSSM5X0.8AD as factory new.
