CS720

Imperial Structural Standard Crownserts

CS Series / Standard Type / 17-4PH / Structural

Installed using the Crownserts Hand-Installation Tool:  CST720

CS720 reinforces or repairs 7/16-20 UNF imperial threads in aluminium, magnesium or other non-ferrous materials. 17-4PH stainless steel, with .468 15/32 tap-hole guidance and CST720 hand installation tooling.

Crownserts can offer you the part CS720 with Certificate of Quality, Certificate of Conformity and Certificate of Origin on request.

CS720 - Imperial Structural Standard Crownserts
CS720 - Imperial Structural Standard Crownserts
CS720 - Imperial Structural Standard Crownserts
CS720 - Imperial Structural Standard Crownserts
 How to install a Crownsert?
CS720 - Imperial Structural Standard Crownserts
CS720 - Imperial Structural Standard Crownserts
CS720 - Imperial Structural Standard Crownserts

Thread & Dimensions

A internal thread (Class 3B) 7/16-20 UNF
B external thread (Class 3A) 1/2-20 UNF
Ø max minor special .4630
Ø C (+.008/-.002) .439
D (+.015/-.000) .135
F .430
G (±.010) .660
J (±1) 39
Through-hole preparation Min. full THD depth .920; Min. full depth .695
Blind-hole preparation Min. full THD depth .820; Min. full depth .695

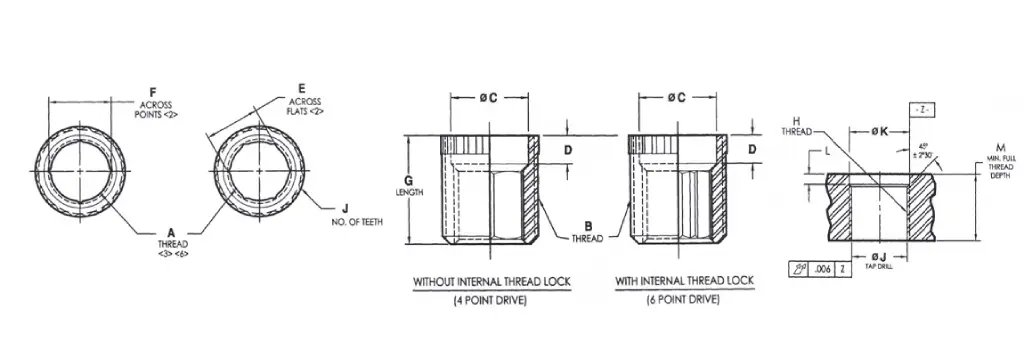

CS720 schematic

Material & Finish

Material 17-4PH, Cond H1025 per AMS 5643
Finish PASSIVATED per AMS 2700 & SFL coated per SAE AS5272, Type I
Temperature range -110°/+650°F
Heat treat RC 35-42
Magnetic YES
Material note Standard material code; no suffix added to the part number.

Tooling & Preparation

Hand-installation tool part number CST720
Step drill part number CSD0468
Tap through tool part number TTI0500
Blind tap tool part number TBI0500
Removal tool part number CSRT720
 REQUEST A QUOTE  DOWNLOAD OUR CATALOGUE

Crownserts is offering part CS720 as factory new.
